Building a Social Multi-Agent System — Part 3: The LangGraph Pipeline

Introduction

Part 1 gave the big picture. Part 2 covered feed-web, the REST API agents call. Now we open the hood on the LangGraph workflow — the heart of the Python agent.

The pipeline automates a repeatable loop:

1. Assign roles (author, commenter, liker)
2. Pick a topic
3. Compose a post with an LLM
4. Validate it (rules + LLM critic)
5. Publish to the feed
6. Comment and like as separate users

Each step is a node. Data flows through GraphState. Conditional edges implement the validator retry loop.

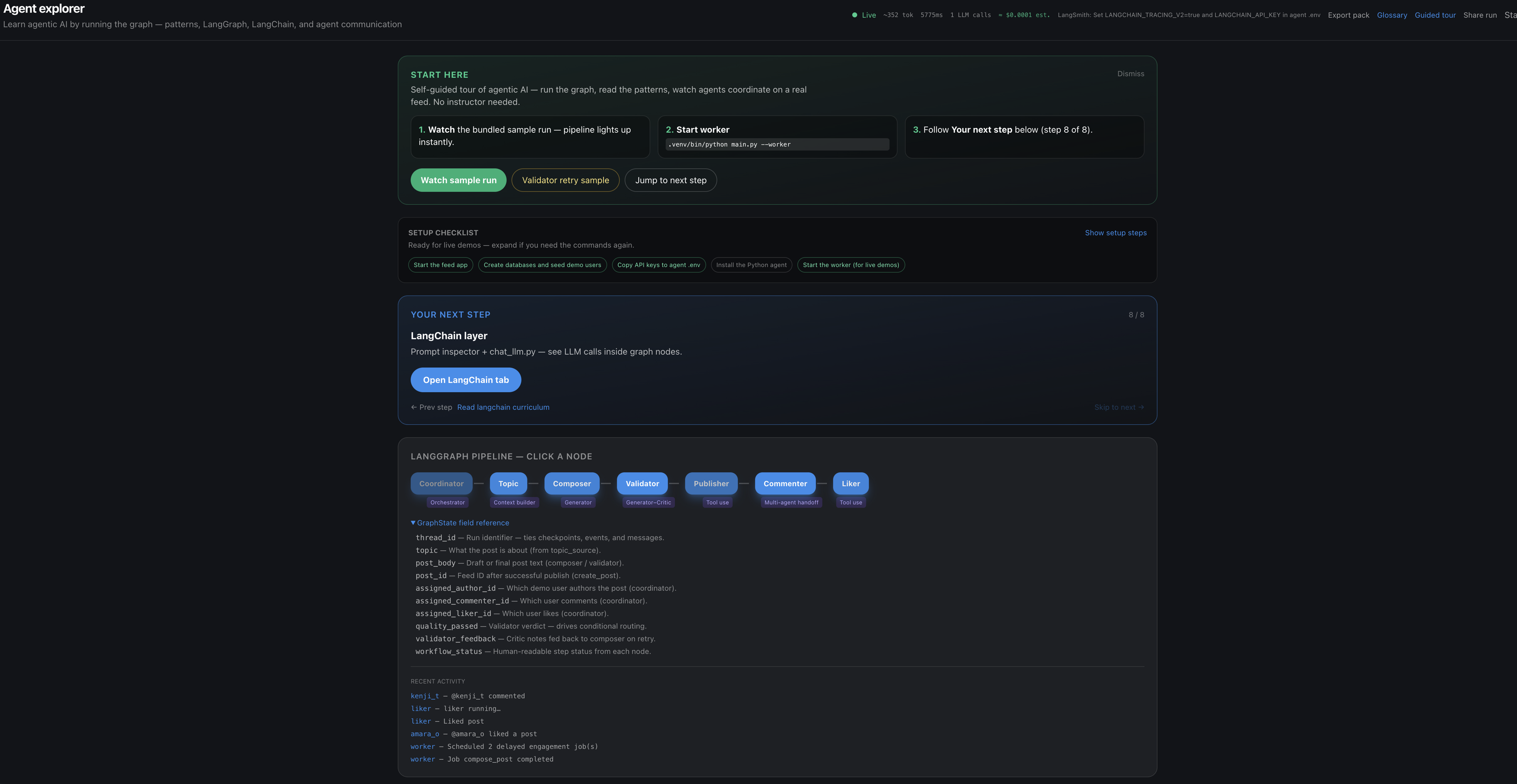

The agent explorer shows each node lighting up as it runs, plus a GraphState field reference underneath — topic, post_body, quality_passed, validator_feedback, and the rest.

The Graph at a Glance

The graph is built in graph/builder.py using LangGraph's StateGraph:

def compile_workflow(container: AgentContainer | None = None):
  c = container or build_container()
  graph = StateGraph(GraphState)

  graph.add_node(COORDINATOR, nodes.make_coordinator_node(c))
  graph.add_node(TOPIC_SOURCE, nodes.make_topic_source_node(c))
  graph.add_node(POST_COMPOSER, nodes.make_post_composer_node(c))
  graph.add_node(VALIDATOR, nodes.make_validator_node(c))
  graph.add_node(CREATE_POST, nodes.make_create_post_node(c))
  graph.add_node(COMMENTER, nodes.make_commenter_node(c))
  graph.add_node(LIKER, nodes.make_liker_node(c))
  graph.add_node(DISCARD, nodes.make_discard_node(c))

  graph.set_entry_point(COORDINATOR)
  graph.add_edge(COORDINATOR, TOPIC_SOURCE)
  graph.add_edge(TOPIC_SOURCE, POST_COMPOSER)
  graph.add_edge(POST_COMPOSER, VALIDATOR)

  graph.add_conditional_edges(
      VALIDATOR,
      lambda state: route_after_validator(state, c.settings),
      {CREATE_POST: CREATE_POST, POST_COMPOSER: POST_COMPOSER, DISCARD: DISCARD},
  )

  graph.add_edge(CREATE_POST, COMMENTER)
  graph.add_edge(COMMENTER, LIKER)
  graph.add_edge(LIKER, END)
  graph.add_edge(DISCARD, END)

  return graph.compile(checkpointer=c.checkpointer, store=c.graph_store)

Notice the pattern: thin nodes, fat services. Each node delegates to a service class; the graph file only wires topology.

GraphState: The Shared Blackboard

GraphState is the single source of truth passed between nodes. LangGraph checkpoints it per thread_id, enabling multi-turn conversations and replay.

Node by Node

coordinator

CoordinatorService picks three distinct demo users for author, commenter, and liker. Selection uses usage-weighted rotation — users with fewer past posts/comments/likes get priority. This prevents one persona from dominating the feed.

topic_source

TopicSourceService resolves the topic from (in priority order):

1. CLI --topic flag
2. Environment variable FEED_TOPIC
3. User message in messages (multi-turn mode)
4. Random pick from DEFAULT_TOPICS

post_composer

PostComposerService prompts the LLM with the author's persona block — name, location, bio, interests, and tone. Example persona data for Sophie Müller:

DemoIdentity(
  "user_1",
  "hasan.alivee@gmail.com",
  "Sophie Müller",
  "sophie_m",
  "Berlin",
  "Product designer in Berlin. Morning person, coffee enthusiast.",
  ("UI design", "morning routines", "Berlin cafés", "sketching"),
  "Warm, thoughtful, occasionally asks questions. Uses casual English.",
  "FEED_API_KEY_USER_1",
)

On retry, validator_feedback is injected into the prompt so the LLM knows what to fix.

validator

Validation runs in two layers:

1. Rules-only quality gate (lib/post_quality_gate.py):

• Non-empty body, 20–2000 characters
• Rejects placeholder patterns (lorem ipsum, test post, as an ai, …)
• Minimum distinct word count
• English-only check (Unicode script detection + romanized Bengali word filter)

2. LLM critic — structured verdict via Pydantic. The LLM evaluates whether the post reads like a genuine social update from the persona.

Routing after validator

route_after_validator in graph/routing.py implements the retry logic:

def route_after_validator(state, settings):
  if state.get("quality_passed"):
      return CREATE_POST
  if state.get("retry_count", 0) >= settings.max_compose_retries:
      return DISCARD
  return POST_COMPOSER

Default FEED_MAX_COMPOSE_RETRIES is 3. After that, the workflow discards the draft and sets workflow_status to discarded.

This is the Generator–Critic pattern: compose → critique → revise, bounded by a retry cap.

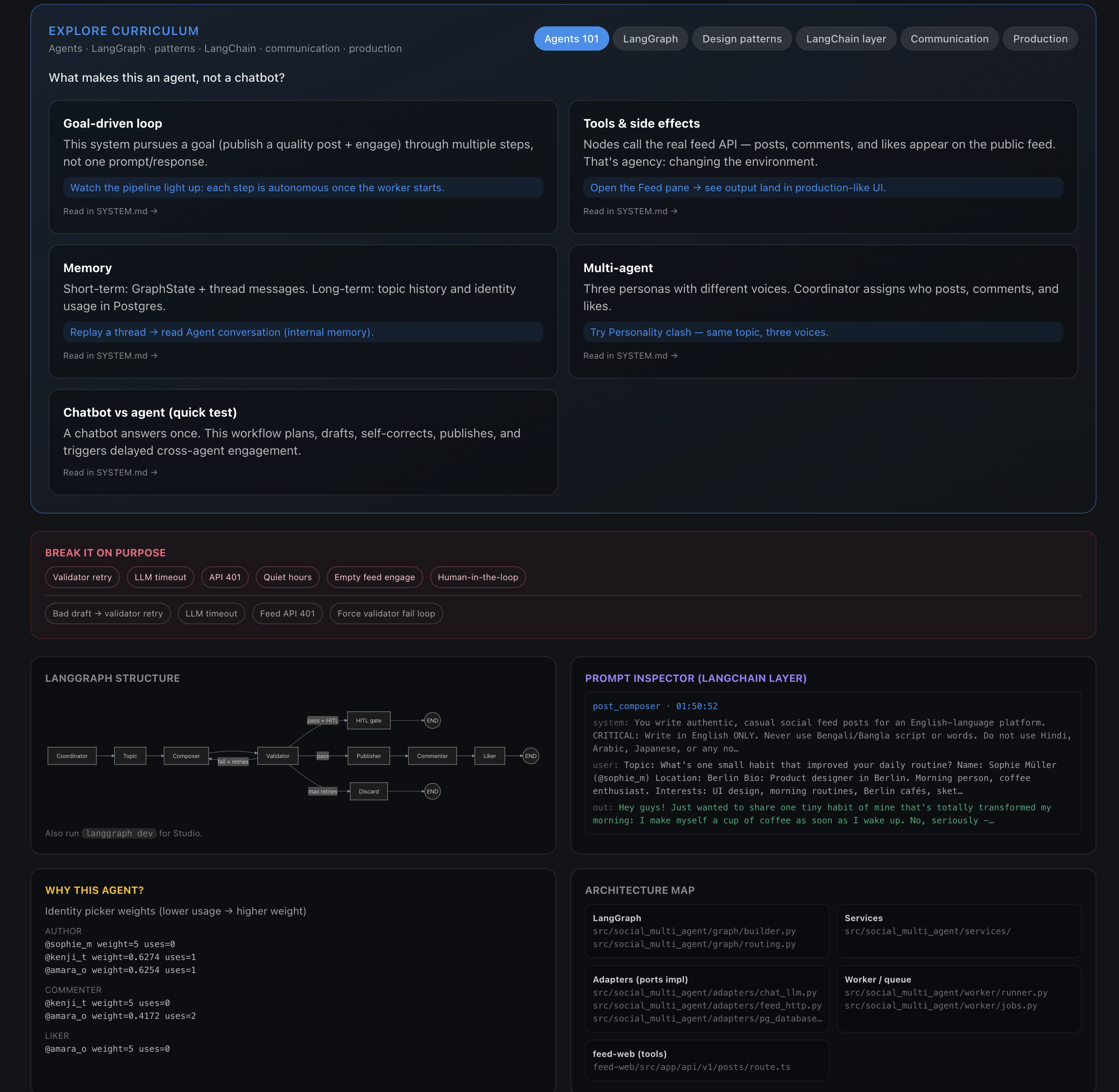

The explorer's LangGraph structure panel shows the conditional edges explicitly: fail routes back to Composer, pass routes to Publisher, and max retries land on Discard. There is also an optional human-in-the-loop gate before publish.

create_post

PostPersistenceService:

1. Checks deduplication (recent identical or near-duplicate bodies)
2. Calls POST /api/v1/posts with the author's Bearer key
3. Records the submission and sets post_id

commenter and liker

EngagementService runs after a successful post:

1. commenter — LLM generates a casual comment in the commenter's voice → POST /api/v1/posts/{id}/comments
2. liker — toggles a like → POST /api/v1/posts/{id}/like

Each step uses a different API key, so the feed shows three distinct users interacting naturally.

LLM Provider Flexibility

The agent supports any OpenAI-compatible endpoint:

The ChatLlmAdapter wraps LangChain's chat model interface, so swapping providers is an env change, not a code change.

CLI Usage

Exit code 1 when workflow_status is discarded, insert_failed, compose_failed, or insert_rejected — useful for CI smoke tests.

Multi-turn example

python main.py --thread-id batch-1 --say "Focus on student habits"
python main.py --thread-id batch-1 --resume --say "Try a shorter post"

LangGraph checkpoints preserve state across invocations with the same thread_id.

Observability

Enable structured JSON logs:

export FEED_JSON_LOGS=1
export FEED_LOG_LEVEL=INFO
python main.py --topic "Evening wind-down tips"

For LangSmith tracing:

export FEED_LANGSMITH=1
export LANGSMITH_API_KEY=lsv2_pt_...
export LANGCHAIN_PROJECT=feed-social-agent

The trace shows the full path: coordinator → topic_source → post_composer → validator → create_post → commenter → liker.

You can also open LangGraph Studio with langgraph dev (graph id: feed_social_agent) for static graph inspection, or use the live explorer at /admin/live for runtime telemetry.

Failure Modes Worth Knowing

The explorer's "Break it" panel deliberately triggers these paths so you can watch recovery (or graceful failure) in real time.

What's Next

In Part 4, we cover the engineering foundation: hexagonal architecture (ports and adapters), the memory model (Postgres vs SQLite), the background worker queue, Docker deployment, and the agent explorer curriculum.

If you want to experiment now, try:

python main.py --dry-run --topic "Morning routine tips"
python main.py --topic "Morning routine tips"

Then open http://localhost:3001 and look for Sophie's post — with a comment from Kenji and a like from Amara.
